VISIONICS

Electronics For Command And Control Of Eo/ir Imaging And Lidar Sensors. Electronics For Command And Control Of Eo/ir Imaging And Lidar

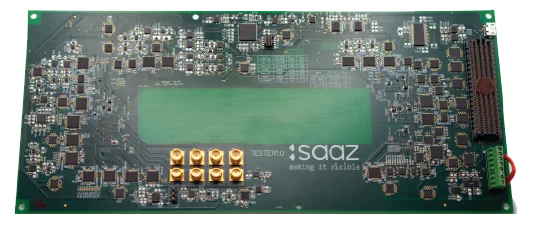

VISIONICS family of compact, lowpower camera electronics qualified and available for command and control of sensors for commercial and military applications. Custom solutions available.

FEATURES

  • HiRel components
  • Compliant with MIL quality standards
  • Support for imagers and LiDARs
  • Onboard processing for image enhancement and target tracking
  • Support for edge computing and AI algorithms
  • Field upgradable firmware

APPLICATIONS

  • Industrial/commercial
  • DoD EO/IR systems

VERSATALITY

  • Available for UV, VIS, SWIR, MWIR and LWIR sensors
  • Customizable to specific sensors

Specifications

  • Sensor SupportUp to 8k x 8k
  • Data Lanes 1-16 lanes
  • Data Rate Up to 3.3 Gbps/lane
  • Output Formats 10/20/40GigE, LVDS, CML
  • Output Interface Copper, Fiber
  • Command and Control I2C, SPI, Ethernet, LVDS
  • Processor Reconfigurable FPGA
  • Processing NUC, BPR, Decimation, Tracking
  • Firmware <Field upgradable
  • Power 1-10W
  • Ambient Temp Range-55C to 85C
  • External Trigger TTL/CMOS, LVDS
