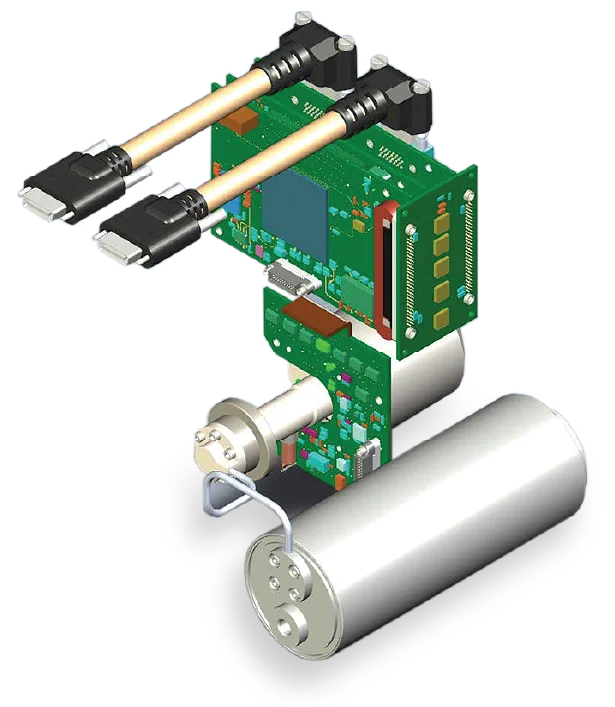

HYPERVISION-M
Event Sensing In The Mwir Band For Military And Industrial High-speed Sensing Applications.
HYPERVISION-M is a cryo cooled MWIR event-based camera developed for detecting and tracking high-speed events in industrial and military scenarios. Multiple array formats are available. SWIR, LWIR, and dual-band versions are under development.
FEATURES
- Pixel-level event highspeed sensing
- Simultaneous event and intensity sensing
- High Dynamic Range
- Region of Interest
- Compatible with Metavision® SDK** (with extensions)
APPLICATIONS
- High-speed sensing
- Threat detection & tracking
VERSATALITY
- Available in multiple array formats
- Programmable frame & event data
- Custom formats & interfaces available
Specifications
- Sensor: 2.5–5μm InGaAs
- Resolution: 512×512, 640×512, 1280×720
- Pixel Size: 12μm
- Synchronous Event Rate: 14/60 KHz
- Asynchronous Event Rate: 0.5 Giga-events/sec
- Peak QE: >70% (typical)
- Pixel Latency: <50 μs
- Dynamic Range: >120dB
- Typical Power: <10W
- Steady State Power: <4W
- Ambient Temp Range: -40°C to 71°C
- External Trigger: TTL/CMOS
- Output Format: MIPI, CPI, 10GigE
- Compatibility: Metavision® SDK
