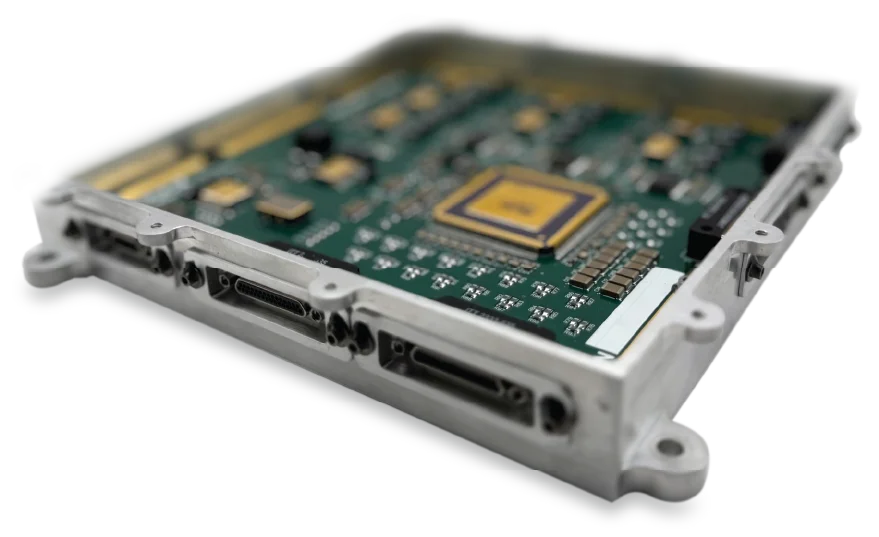

ORBIONICS family of radiation hardened electronics is space qualified and available for command and control of sensors in satellites and other space applications. Custom solutions available.
FEATURES
- HiRel connectors
- Compliant with space quality standards
- Support for imagers and LiDARs
- Onboard processing for image enhancement and target tracking
- Support for edge computing and AI algorithms
- Field upgradable firmware
APPLICATIONS
- Satellite payloads
- Space robotics
VERSATALITY
- Available for UV, VIS, SWIR, MWIR and LWIR sensors
- Customizable to specific sensors
Specifications
- Sensor SupportUp to 8k x 8k
- Data Lanes 1-16 lanes
- Data Rate Up to 3.3 Gbps/lane
- Output Formats 10/20/40GigE, LVDS, CML
- Output Interface Copper, Fiber, SpaceWire
- Command and Control I2C, SPI, Ethernet, LVDS, SpaceWire
- Processor Rad-hard FPGA
- Processing NUC, BPR, Decimation, Tracking
- Firmware Field upgradable
- Power 2-10W
- Ambient Temp Range-55C to 85C
- External Trigger TTL/CMOS, LVDS
- Radiation Tolerance100-1000 Krad (Si) TID 70-125 MeV-cm2/mg SEL
- Compatibility Standard Space Bus configurations
Contact Us
Ready to Power Your Mission?
Whether you are launching the next satellite or developing battlefield technology, our infrared sensors deliver clarity where the human eye cannot.
