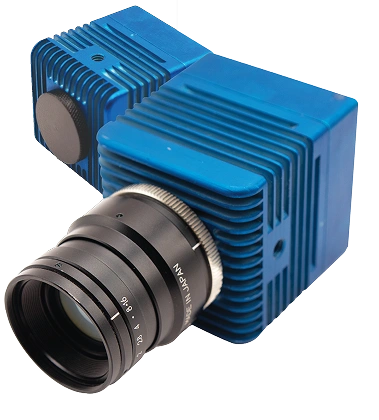

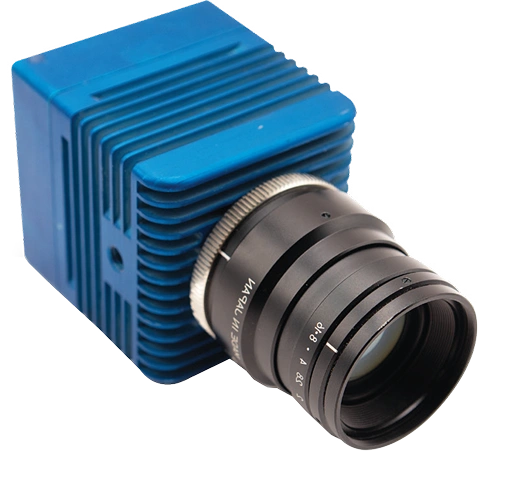

HYPERVISION-S
Event Sensing In The Swir Band For Military And Industrial High-speed Sensing Applications.
HYPERVISION-S is a SWIR event-based camera developed for detecting and tracking high-speed events in industrial and military scenarios. Multiple array formats are available. MWIR, LWIR, and dual-band versions are under development.
FEATURES
- Pixel-level event highspeed sensing
- Simultaneous event and intensity sensing
- High Dynamic Range
- Region of Interest
- Compatible with Metavision® SDK** (with extensions)
APPLICATIONS
- High-speed sensing
- Security/surveillance
VERSATALITY
- Available in multiple array formats
- Programmable frame & event data
- Custom formats & interfaces available
Specifications
- Sensor 0.45-1.7µm InGaA
- Dynamic Range >120dB
- Resolution 512×512, 640×512
- Typical Power <2W(uncooled)<10W (TECooled)
- Pixel Size 12µm
- Low Power Mode(s) < 300mW
- Synchronous Event Rate 60 KHz
- Ambient Temp Range -40C to 85C
- Asynchronous Event Rate 0.5Giga-events/sec
- External Trigger TTL/CMOS
- Peak QE >70% (typical)
- Output Format MIPI, CPI, 10GigE
- Pixel Latency <50 µs
- Compatibility Metavision® SDK
