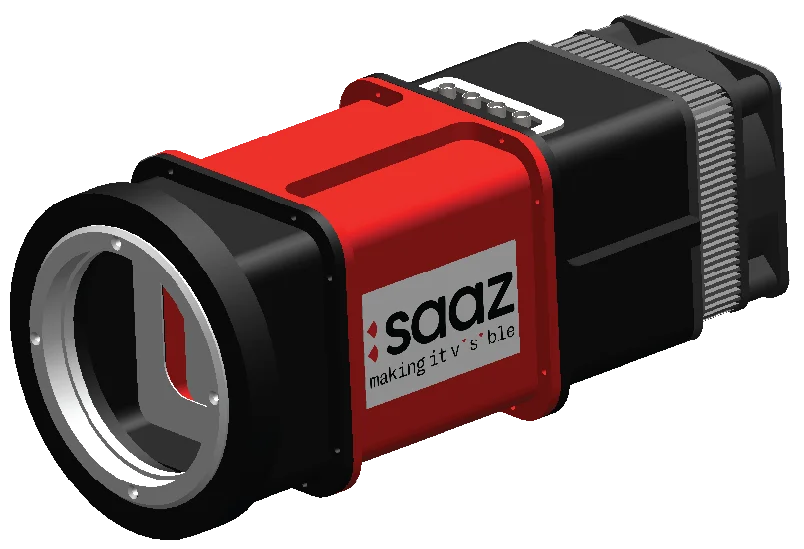

HYPERION1 & 5
Ultra-high Resolution Remote Sensing Solutions. 1.3 & 5.2 Gigapixel Cameras For Wide Area High Resolution Remote Sensing.
Hyperion is an ultra-high resolution visible and near-IR camera platform developed for fast-schedule and low-cost remote sensing missions. Various package options are available for airborne and space platforms. The camera is configurable for a variety of applications, such as a push broom scanner, a TDI scanner, and a stare and step payload.
FEATURES
- Visible Range (400nm-800nm)
- High resolution: 1.3 Gigapixels
- Ultra-high-resolution option with quad 1.3 x 4 = 5.2 Gigapixels
- Compact size (<18in3)
- Package handles >50W heat load
- Built-in image processing
- Onboard storage
- Low power consumption
APPLICATIONS
- High altitude remote sensing
- Security and Surveillance
VERSATALITY
- Available as single or quad module
- Adaptable for spacecraft installation
- Various lens/telescope options
Specifications
- SensorCMOS RGB Full Array
- Sensor Pixel Size1μm to 1.4μm
- Frame Rate1Hz to >30Hz options
- Array Formats37 Kpixel × 35 Kpixel (R × C)
- Detector TypeSilicon
- Digital Output Format8-bit, 10-bit, or 12-bit
- F#Customizable from f/2 to f/10
- Size without Lens75mm × 75mm × 51mm
- Size with baseline lens attachment160mm × 88mm × 88mm
- Weight Without lens1 kg
- Weight With Baseline lens3.5 kg
- Lens OptionCustomizable
- Operating temperature-30°C to 50°C
- Storage temperature-55°C to 105°C
